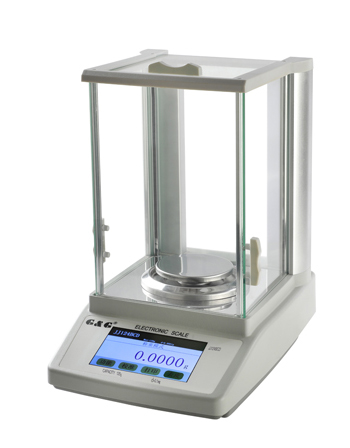

JJBFD series 0.1mg
Product features Type
·7 weighing units:g,ct,ozt,oz,GN,dwt,mg ·Robust chassis and windproof cover in pointed cast aluminum
·Counting function(Reference Num:1/10/20/50/100) ·Sensor with force compensation technology
·Full range tare ·Stainless steel weighing surface
·Internal Automatic calibration ·Touch screen display 110*61mm
·Underfloor weighing
|
Model
|
JJ124BFD
|
JJ224BFD
|
JJ324BFD
|
|
Capacity
|
120g
|
220g
|
320g
|
|
Resolution(d)
|
0.1mg
|
0.1mg
|
0.1mg
|
|
Tare range
|
0~120g
|
0~220g
|
0~320g
|
|
Linearity
|
±3d
|
±3d
|
±3d
|
|
Reproducibility
|
2d
|
2d
|
2d
|
|
Stabilization time
|
<4S
|
|
Operation temperature
|
18~23℃
|
|
Humidity
|
(50-70)%RH
|
|
Weighing plate
|
Ф90cm
|
|
Calibration
|
Internal,time and temperature controlled
|
|
Minimum weight
|
20d
|
|
Minimum piece weight
|
1d
|
|
Warming up time
|
1h
|
|
Counting function
|
1/10/20/50/100
|
|
Weighing units
|
g/ct/ozt/oz/GN/dwt/mg
|
|
Volume
|
220（W)×360（L）×345（H）mm
|
|
Power supply
|
AC230V±10% 50Hz/60HZ ±1Hz
|
|
Underfloor weighing
|
Yes
|
|
Interface
|
RS232
|
|
