E-KY series Current Location:Home >> Products >> E-KY series

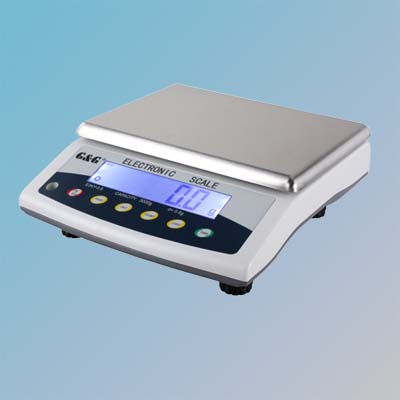

E-KY series electronic scale
E-KY series electronic scale
 Product features                                                                  Model
·2 weighing units: g,lb                                                         ·Solid aluminum base
·Counting function(Reference Num: 1/10/20/50/100)        ·Strain gauge
·Full range tare                                                                    ·Stainless steel and plastic weighing plate
·Auto calibration                                                                  ·33mm LCD display with white backlight
·With battery, AC/DC function                                            ·Level adjustable
·RS232 interface, PRINT key

Model
E3KY-0.1
E6KY-0.1
E15KY-0.5
E30KY-1
Capacity
3kg
6kg
15kg
30kg
Resolution(d)
0.1g
0.1g
0.5g
1g
Calibration Graduation(e)
10d
10d
10d
10d

Tare Scope
0~3kg
0~6kg
0~15kg
0~30kg
Calibrating Weight
2kg
5kg
10kg
20kg

Model
E3KY-0.5
E6KY-1
E15KY-1
E30KY-2
Capacity
3kg
6kg
15kg
30kg
Resolution(d)
0.5g
1g
1g
2g
Calibration graduation(e)
10d
10d
10d
10d

Tare range
0~3kg
0~6kg
0~15kg
0~30kg
Calibrating weight
2kg
5kg
10kg
20kg

Dimension of platform
300×220mm
Volume
330(L)×300(W)×100(H)mm
Power supply
 AC220V±10%    50Hz± 1Hz   DC12V/600mA
       battery:  DC6V/4Ah/20HR
Operation temperature
0~40℃
Humidity
≤80%RH
Interface
RS232
